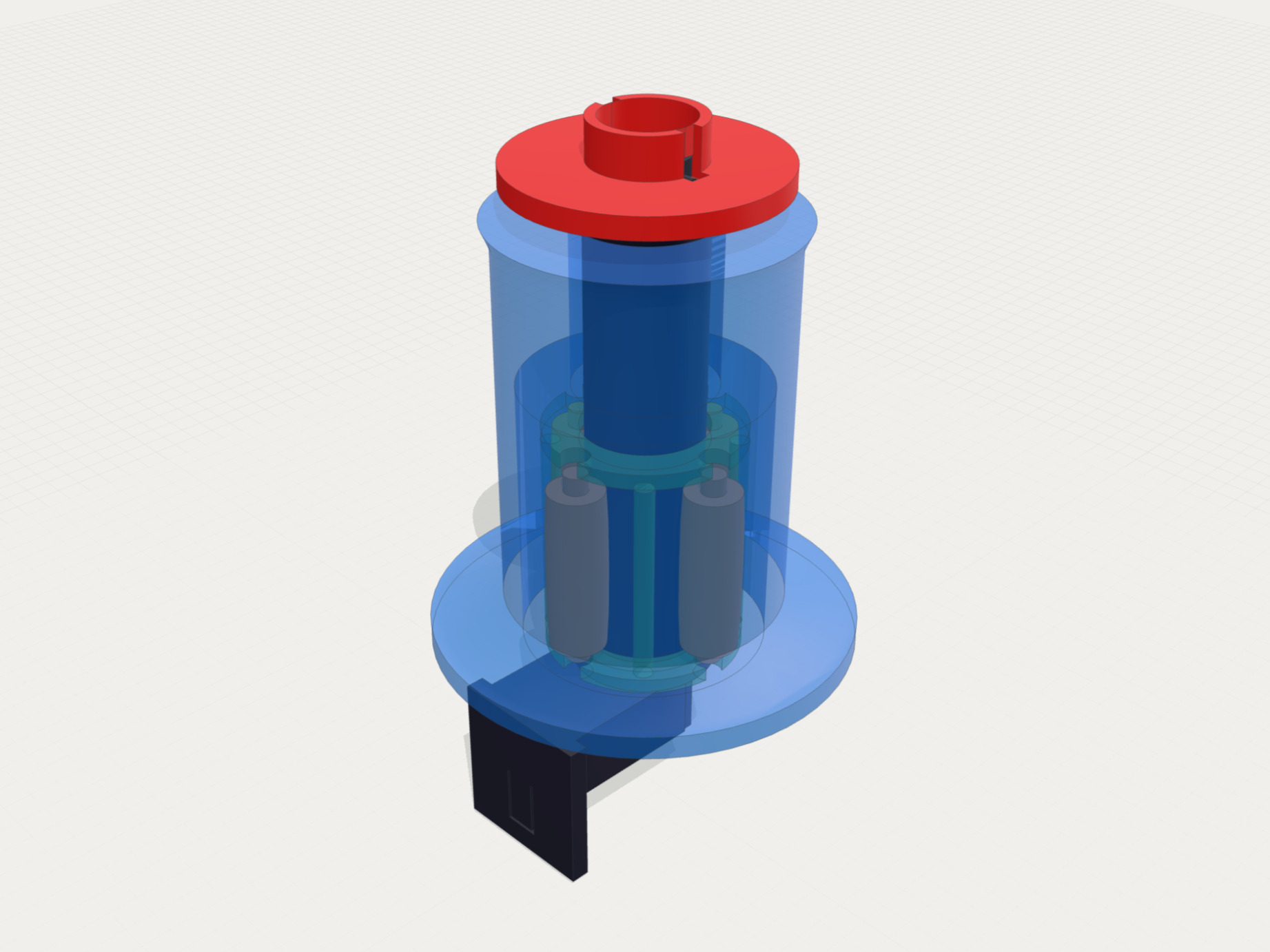

Low-Friction Spool Holder

// ==============================================================================
// 100% 3D-Printed Optimized Low-Friction Spool Holder
// Fully Parametric, Zero Hardware, Pure FDM Roller-Bearing Mechanism
// ==============================================================================

/* [Mode Selection] */
mode = "print_layout"; // [assembly, exploded, cutaway, print_layout, mount_core, drum, roller, cage, cap, clearance_coupon, roller_test]

/* [Basic Spool Specifications] */
spool_width             = 68.0; // Standard 1kg spool barrel width (mm)
max_spool_width         = 80.0; // Maximum spool clearance capacity
minimum_spool_bore      = 50.5; // Smallest allowable inner diameter of spool hub
recommended_spool_bore  = 53.0; // Standard nominal spool bore

/* [Roller Kinematics & Race Geometry] */
roller_count            = 4;    // Number of rolling elements (0°, 90°, 180°, 270°)
roller_od               = 10.0; // Actual maximum roller outer diameter (mm)
roller_len              = 34.0; // Active roller contact length (mm)
roller_crown            = 0.20; // Self-centering crown radius delta (mm)
roller_pin_d            = 4.0;  // Roller end guide trunnion diameter (mm)
roller_pin_len          = 3.0;  // Roller end guide trunnion length (mm)

radial_clearance        = 0.25; // Working radial gap per side (0.20 - 0.30 mm)
axial_clearance         = 0.50; // Axial running play for free rotation (mm)
cage_pocket_clearance   = 0.35; // Clearance around roller trunnions in cage (mm)

/* [Drum & Core Structural Sizing] */
inner_race_radius       = 9.5;  // Stationary spindle core outer radius (OD = 19 mm)
drum_wall_thickness     = 3.0;  // Structural race & barrel wall thickness (min 2.5 mm)
rear_flange_od          = 70.0; // Rear spool stop flange outer diameter (mm)
front_lip_od            = 49.0; // Front anti-slide-off spool lip diameter (mm)

/* [Mount Interface Calibration Parameters] */
mount_tongue_w          = 20.0; // Base slide tongue width (mm)
mount_tongue_t          = 4.8;  // Base slide tongue thickness (mm)
mount_tongue_l          = 26.0; // Slide insertion depth (mm)
mount_lip_w             = 2.4;  // Side guide step rail width (mm)
mount_lip_h             = 1.6;  // Side guide step rail depth (mm)
mount_detent_pos        = 16.0; // Insertion distance to snap detent (mm)
mount_detent_h          = 1.2;  // Detent wedge snap height (mm)
mount_arm_drop          = 28.0; // Vertical offset from spool axis to mount slide (mm)
mount_arm_thick         = 12.0; // Structural root thickness along spool axis (mm)
mount_gusset_t          = 5.0;  // Reinforcement gusset rib thickness (mm)

/* [Rendering Fidelity] */
$fn = 64;

// ==============================================================================
// DERIVED MATHEMATICAL RELATIONSHIPS & FIRST PRINCIPLES
// ==============================================================================

roller_r            = roller_od / 2;
working_radial_gap  = roller_od + (2 * radial_clearance);
outer_race_radius   = inner_race_radius + working_radial_gap;
roller_pitch_radius = inner_race_radius + radial_clearance + roller_r;

// Drum outer dimensions
drum_inner_radius   = outer_race_radius;
drum_outer_radius   = drum_inner_radius + drum_wall_thickness;
drum_outer_diameter = drum_outer_radius * 2;

// Working lengths
spool_seat_len      = spool_width + 4.0; // Free axial running room for spool
core_spindle_len    = spool_seat_len + 8.0;
cage_od             = (roller_pitch_radius + 1.2) * 2;
cage_id             = (roller_pitch_radius - 1.2) * 2;

// Circumferential clearance between 4 rollers
circ_pitch_dist     = 2 * PI * roller_pitch_radius / roller_count;
chord_clearance     = (sqrt(2) * roller_pitch_radius) - roller_od;

// ==============================================================================
// MECHANICAL VALIDATION ASSERTIONS
// ==============================================================================
assert(drum_outer_diameter < minimum_spool_bore,
    "FATAL: Drum OD exceeds minimum spool bore! Spool will bind.");
assert(drum_wall_thickness >= 2.5,
    "FATAL: Drum wall thickness under 2.5 mm structural threshold.");
assert(working_radial_gap - roller_od >= 2 * radial_clearance - 0.001,
    "FATAL: Working radial race equation does not satisfy 2 * radial_clearance.");
assert(chord_clearance > 2.0,
    "FATAL: Rollers will physically collide circumferentially!");
assert(roller_len < spool_seat_len,
    "FATAL: Roller length exceeds available spool seat length.");

// ==============================================================================
// MODULES
// ==============================================================================

// 1. CROWNED ROLLER WITH LOW-FRICTION TRUNNIONS
module crowned_roller() {
    // Roller axis parallel to spool axis (along Z axis)
    // Generates a precision crowned profile: slightly larger OD at center for self-tracking
    // Integrated trunnion pins on both ends for lightweight cage containment
    render() rotate_extrude() {
        polygon([
            [0, -roller_len/2],
            [roller_pin_d/2, -roller_len/2],
            [roller_pin_d/2, -(roller_len/2 - roller_pin_len)],
            [roller_r - 0.35, -(roller_len/2 - roller_pin_len)],
            [roller_r - 0.08, -roller_len/4],
            [roller_r, 0],
            [roller_r - 0.08, roller_len/4],
            [roller_r - 0.35, roller_len/2 - roller_pin_len],
            [roller_pin_d/2, roller_len/2 - roller_pin_len],
            [roller_pin_d/2, roller_len/2],
            [0, roller_len/2]
        ]);
    }
}

// 2. LIGHTWEIGHT 4-ROLLER CAGE (0°, 90°, 180°, 270°)
module roller_cage() {
    ring_thick = 2.5;
    pin_pocket_r = (roller_pin_d/2) + cage_pocket_clearance;

    difference() {
        union() {
            // Front ring
            translate([0, 0, roller_len/2 + 0.5])
                cylinder(r=roller_pitch_radius + 1.5, h=ring_thick, center=false);
            // Rear ring
            translate([0, 0, -(roller_len/2 + 0.5 + ring_thick)])
                cylinder(r=roller_pitch_radius + 1.5, h=ring_thick, center=false);
            // 4 Low-profile interconnecting bridge struts located between rollers (at 45°, 135°, 225°, 315°)
            for (a = [45, 135, 225, 315]) {
                rotate([0, 0, a])
                    translate([roller_pitch_radius, 0, -roller_len/2])
                        cylinder(r=1.6, h=roller_len, $fn=16);
            }
        }
        // Bore through cage rings
        cylinder(r=inner_race_radius + 0.8, h=100, center=true);

        // Pivot sockets for roller trunnions
        for (i = [0 : roller_count-1]) {
            rotate([0, 0, i * (360/roller_count)]) {
                translate([roller_pitch_radius, 0, roller_len/2 - 0.2])
                    cylinder(r=pin_pocket_r, h=roller_pin_len + 2, $fn=24);
                translate([roller_pitch_radius, 0, -(roller_len/2 + roller_pin_len + 1.8)])
                    cylinder(r=pin_pocket_r, h=roller_pin_len + 2, $fn=24);
            }
        }
    }
}

// 3. SLIDE-IN MOUNT INTERFACE
module slide_mount() {
    // Stepped slide-in tongue matching receiver bracket socket
    difference() {
        union() {
            // Base slide body
            translate([-mount_tongue_w/2, 0, 0])
                cube([mount_tongue_w, mount_tongue_t, mount_tongue_l]);

            // Side guide rails / lips
            translate([-(mount_tongue_w/2 + mount_lip_w), 0, 0])
                cube([mount_lip_w, mount_tongue_t - mount_lip_h, mount_tongue_l]);
            translate([mount_tongue_w/2, 0, 0])
                cube([mount_lip_w, mount_tongue_t - mount_lip_h, mount_tongue_l]);

            // Lead-in insertion chamfers
            translate([-mount_tongue_w/2, 0, 0])
                rotate([-45, 0, 0])
                    cube([mount_tongue_w, 2, 2]);
        }

        // Integrated snap-lock flexure cantilever slot
        translate([-3.0, -1, 4.0])
            cube([6.0, mount_tongue_t + 2, mount_tongue_l - 8.0]);
    }

    // Retention snap detent tooth with lead-in ramp on flexible tongue
    translate([-2.5, 0, 4.5]) {
        cube([5.0, mount_tongue_t, mount_tongue_l - 9.0]);
        // Latch tooth wedge
        translate([0, mount_tongue_t, mount_detent_pos - 4.5]) {
            polyhedron(
                points=[
                    [0, 0, 0], [5.0, 0, 0], [5.0, mount_detent_h, 3.0], [0, mount_detent_h, 3.0],
                    [0, 0, 5.0], [5.0, 0, 5.0]
                ],
                faces=[
                    [0,1,2,3], [3,2,5,4], [0,3,4], [1,5,2], [0,4,5,1]
                ]
            );
        }
    }
}

// 4. REINFORCED CANTILEVER ARM & STATIONARY SPINDLE CORE
module stationary_core_and_arm() {
    // 1. Spool core inner race spindle
    difference() {
        union() {
            // Precision inner race zone
            cylinder(r=inner_race_radius, h=core_spindle_len);

            // Spindle shoulder / thrust ring
            cylinder(r=inner_race_radius + 2.5, h=4.0);

            // Front cap locking neck with bayonet notch
            translate([0, 0, core_spindle_len]) {
                cylinder(r=inner_race_radius - 2.5, h=7.0);
                // Bayonet locking pins
                translate([0, 0, 3.5])
                    rotate([0, 90, 0])
                        cylinder(r=1.5, h=(inner_race_radius - 0.5) * 2, center=true, $fn=16);
            }

            // 2. Heavy Root Cantilever Arm to Mount
            translate([0, -mount_arm_drop, 0]) {
                // Main rigid drop block
                translate([-mount_tongue_w/2, 0, -mount_arm_thick])
                    cube([mount_tongue_w, mount_arm_drop, mount_arm_thick]);

                // Massive triangular stiffener gussets
                hull() {
                    translate([-mount_tongue_w/2, 0, -mount_arm_thick])
                        cube([mount_tongue_w, 2.0, -mount_arm_thick]);
                    translate([-inner_race_radius, mount_arm_drop, -mount_arm_thick])
                        cube([inner_race_radius * 2, 2.0, mount_arm_thick]);
                }

                // Mount Interface slide
                translate([0, 0, -mount_tongue_l])
                    slide_mount();
            }
        }

        // Weight-reduction / print-speed central core bore
        cylinder(r=4.5, h=core_spindle_len + 20, center=true);
    }
}

// 5. ROTATING OUTER DRUM WITH INTEGRATED SPOOL RACE
module rotating_drum() {
    difference() {
        union() {
            // Main barrel carrying the spool
            cylinder(r=drum_outer_radius, h=spool_seat_len);

            // Rear spool retention guide flange
            cylinder(r=rear_flange_od/2, h=4.0);

            // Transition fillet cone from flange to drum
            translate([0, 0, 4.0])
                cylinder(r1=rear_flange_od/2 - 2.0, r2=drum_outer_radius, h=4.0);

            // Front spool retention lip (gentle angle for easy spool sliding)
            translate([0, 0, spool_seat_len - 3.5])
                cylinder(r1=drum_outer_radius, r2=front_lip_od/2, h=3.5);
        }

        // Calibrated outer bearing race bore for the 4 rollers
        translate([0, 0, -1])
            cylinder(r=outer_race_radius, h=roller_len + 12.0);

        // Front thrust clearance bore
        translate([0, 0, roller_len + 10.0])
            cylinder(r=inner_race_radius + 2.0, h=spool_seat_len, center=false);
    }
}

// 6. TOOL-LESS BAYONET AXIAL RETENTION CAP
module retaining_cap() {
    cap_od = drum_inner_radius + 1.5;
    difference() {
        union() {
            // Outer knurled gripping head
            cylinder(r=cap_od, h=3.5);
            // Internal sleeve
            translate([0, 0, 3.5])
                cylinder(r=inner_race_radius - 0.5, h=6.5);
        }
        // Central hollow bore for spindle bayonet peg
        translate([0, 0, -1])
            cylinder(r=inner_race_radius - 2.2, h=12);

        // Bayonet J-slots
        for (a = [0, 180]) {
            rotate([0, 0, a]) {
                translate([0, 0, 4.0])
                    cube([inner_race_radius * 2 + 2, 3.4, 3.2], center=true);
                // Entry slot
                translate([inner_race_radius - 2.2, -1.7, 3.5])
                    cube([4, 3.4, 7]);
            }
        }
    }
}

// 7. CALIBRATION CLEARANCE COUPON
module clearance_coupon() {
    // Reproduces the exact 3-body tribology stack: Inner Core, Roller, Outer Drum
    difference() {
        union() {
            // Base plate
            cube([55, 30, 3.0]);
            // Inner race segment
            translate([15, 15, 3.0])
                cylinder(r=inner_race_radius, h=10.0);
            // Outer race test segment
            translate([15, 15, 3.0])
                difference() {
                    cylinder(r=outer_race_radius + 3.0, h=10.0);
                    cylinder(r=outer_race_radius, h=12.0);
                    translate([-25, -25, -1]) cube([50, 25, 15]);
                }
        }
        // Engraved text indicator
        translate([32, 10, 2.2])
            linear_extrude(1.2) text("0.25", size=5.5);
    }
    // Matching test roller
    translate([15, 15 + roller_pitch_radius, 8.0])
        crowned_roller();
}

// 8. ROLLER TEST RIG
module roller_test_rig() {
    stationary_core_and_arm();
    translate([roller_pitch_radius, 0, 10 + roller_len/2])
        crowned_roller();
    translate([0, 0, 6.0])
        intersection() {
            rotating_drum();
            cube([60, 60, 40]);
        }
}

// ==============================================================================
// VIEW MODES & SCENE COMPOSITION
// ==============================================================================

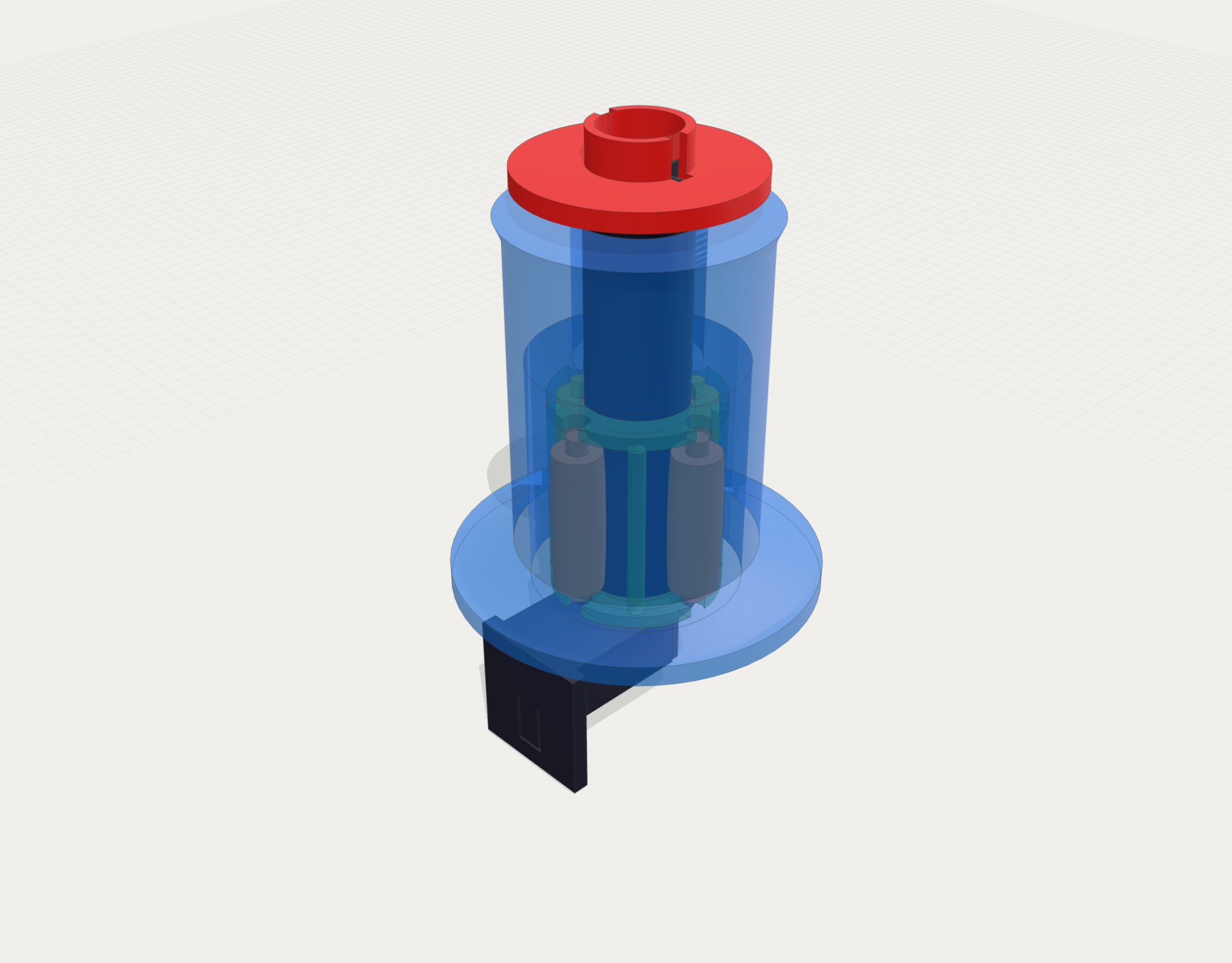

if (mode == "assembly") {
    // @name Spindle Core and Cantilever Arm
    color([0.2, 0.2, 0.25]) stationary_core_and_arm();

    // @name Crowned Rollers
    color([0.85, 0.5, 0.15]) {
        for (i = [0 : roller_count-1]) {
            rotate([0, 0, i * (360/roller_count)])
                translate([roller_pitch_radius, 0, 6.0 + roller_len/2])
                    crowned_roller();
        }
    }

    // @name Roller Alignment Cage
    color([0.3, 0.7, 0.3, 0.7])
        translate([0, 0, 6.0 + roller_len/2])
            roller_cage();

    // @name Rotating Spool Drum
    color([0.15, 0.45, 0.85, 0.65])
        translate([0, 0, 5.0])
            rotating_drum();

    // @name Retention Cap
    color([0.9, 0.2, 0.2])
        translate([0, 0, core_spindle_len + 2.0])
            retaining_cap();
}

else if (mode == "exploded") {
    // Exploded along horizontal spindle axis (Z in SCAD coordinates)
    // @name Spindle Core and Cantilever Arm
    color([0.2, 0.2, 0.25]) stationary_core_and_arm();

    // @name Crowned Rollers and Cage
    translate([0, 0, 30]) {
        for (i = [0 : roller_count-1]) {
            rotate([0, 0, i * (360/roller_count)])
                translate([roller_pitch_radius + 15, 0, roller_len/2])
                    color([0.85, 0.5, 0.15]) crowned_roller();
        }
        color([0.3, 0.7, 0.3])
            translate([0, 0, roller_len/2])
                roller_cage();
    }

    // @name Rotating Spool Drum
    color([0.15, 0.45, 0.85])
        translate([0, 0, 95])
            rotating_drum();

    // @name Retention Cap
    color([0.9, 0.2, 0.2])
        translate([0, 0, 185])
            retaining_cap();
}

else if (mode == "cutaway") {
    // Half-cutaway view to inspect inner race, 4 rollers, cage, and outer drum clearances
    // @name Cutaway Inspection View
    difference() {
        union() {
            color([0.2, 0.2, 0.25]) stationary_core_and_arm();

            for (i = [0 : roller_count-1]) {
                rotate([0, 0, i * (360/roller_count)])
                    translate([roller_pitch_radius, 0, 6.0 + roller_len/2])
                        color([0.85, 0.5, 0.15]) crowned_roller();
            }

            color([0.3, 0.7, 0.3])
                translate([0, 0, 6.0 + roller_len/2])
                    roller_cage();

            color([0.15, 0.45, 0.85, 0.8])
                translate([0, 0, 5.0])
                    rotating_drum();

            color([0.9, 0.2, 0.2])
                translate([0, 0, core_spindle_len + 2.0])
                    retaining_cap();
        }
        // 90-degree inspection wedge cutout
        translate([0, 0, -50])
            cube([100, 100, 200]);
    }
}

else if (mode == "print_layout") {
    // Bed-level print layout: all parts seated flat at Z = 0

    // 1. Stationary core & cantilever arm
    // In stationary_core_and_arm(), the flat back face of the mount root is at Y = -mount_arm_drop,
    // and slide_mount tongue is in negative Z.
    // Rotating around X by 90 (or -90):
    // If rotate([90, 0, 0]), the arm back at Y = -mount_arm_drop lies in Z.
    // Let's place it flat on its back so the cantilever spindle and mount tongue print horizontally:
    // With rotate([90, 0, 0]), Z becomes Y, Y becomes -Z.
    // The spindle axis (Z) is now along Y (horizontal).
    // The arm drop is along -Y, which becomes +Z.
    // Specifically:
    // When rotate([90, 0, 0]):
    // Spindle center is at X=0, Z=0. Lowest point is the spindle cylinder outer surface at Z = -(inner_race_radius + 2.5) = -12.
    // Let's orient stationary_core_and_arm properly on the bed:
    // If rotated [0, 90, 0]: spindle is along X.
    // Or if rotated [90, 0, 0]:
    // Let's test exact resting orientation:
    // Spindle axis horizontal along Y. The drop block and slide mount are flat.
    // In stationary_core_and_arm():
    // The mount tongue back face: translate([-mount_tongue_w/2, 0, 0]) cube([mount_tongue_w, mount_tongue_t, mount_tongue_l]);
    // The mount arm drop: translate([-mount_tongue_w/2, 0, -mount_arm_thick]) cube([mount_tongue_w, mount_arm_drop, mount_arm_thick]) at Y=-mount_arm_drop.
    // So the flat back of the drop block is at Y = -mount_arm_drop.
    // If we rotate([-90, 0, 0]): Y=-mount_arm_drop goes to Z = +mount_arm_drop.
    // If we rotate([90, 0, 0]), Y becomes -Z, so Y = -mount_arm_drop goes to Z = mount_arm_drop (positive).
    // But if we rotate around X and Y so that a stable flat face is at Z = 0:
    // Notice the mount slide has flat back face at Y = -mount_arm_drop, Y in [0, mount_tongue_t] relative to that.
    // Let's check the bounding box or test.
    // Let's write the layout cleanly and check render!

    // @name Spindle Core and Mount
    translate([0, 10, inner_race_radius + 2.5])
        rotate([-90, 0, 0])
            stationary_core_and_arm();

    // 2. Rotating outer drum printed vertically on its wide rear flange (Z = 0)
    // @name Rotating Drum
    translate([65, 30, 0])
        rotating_drum();

    // 3. Four crowned rollers printed vertically on their flat trunnion pin base
    // @name Crowned Rollers
    for (r = [0 : 3]) {
        translate([-35, 10 + (r * 18), roller_len/2])
            crowned_roller();
    }

    // 4. Lightweight roller cage printed flat on rear ring
    // rear ring is at Z = -(roller_len/2 + 0.5 + ring_thick) = -(17 + 0.5 + 2.5) = -20.
    // Height offset = 20 places bottom at Z = 0!
    // @name Roller Cage
    translate([-55, -45, roller_len/2 + 0.5 + 2.5])
        roller_cage();

    // 5. Retention cap printed flat on its outer gripping head (Z = 0)
    // @name Retention Cap
    translate([-15, -45, 0])
        retaining_cap();
}

else if (mode == "mount_core") {
    // @name Spindle Core and Mount
    stationary_core_and_arm();
}

else if (mode == "drum") {
    // @name Rotating Drum
    rotating_drum();
}

else if (mode == "roller") {
    // @name Crowned Roller
    crowned_roller();
}

else if (mode == "cage") {
    // @name Roller Cage
    roller_cage();
}

else if (mode == "cap") {
    // @name Retention Cap
    retaining_cap();
}

else if (mode == "clearance_coupon") {
    // @name Clearance Coupon
    clearance_coupon();
}

else if (mode == "roller_test") {
    // @name Roller Test Rig
    roller_test_rig();
}
