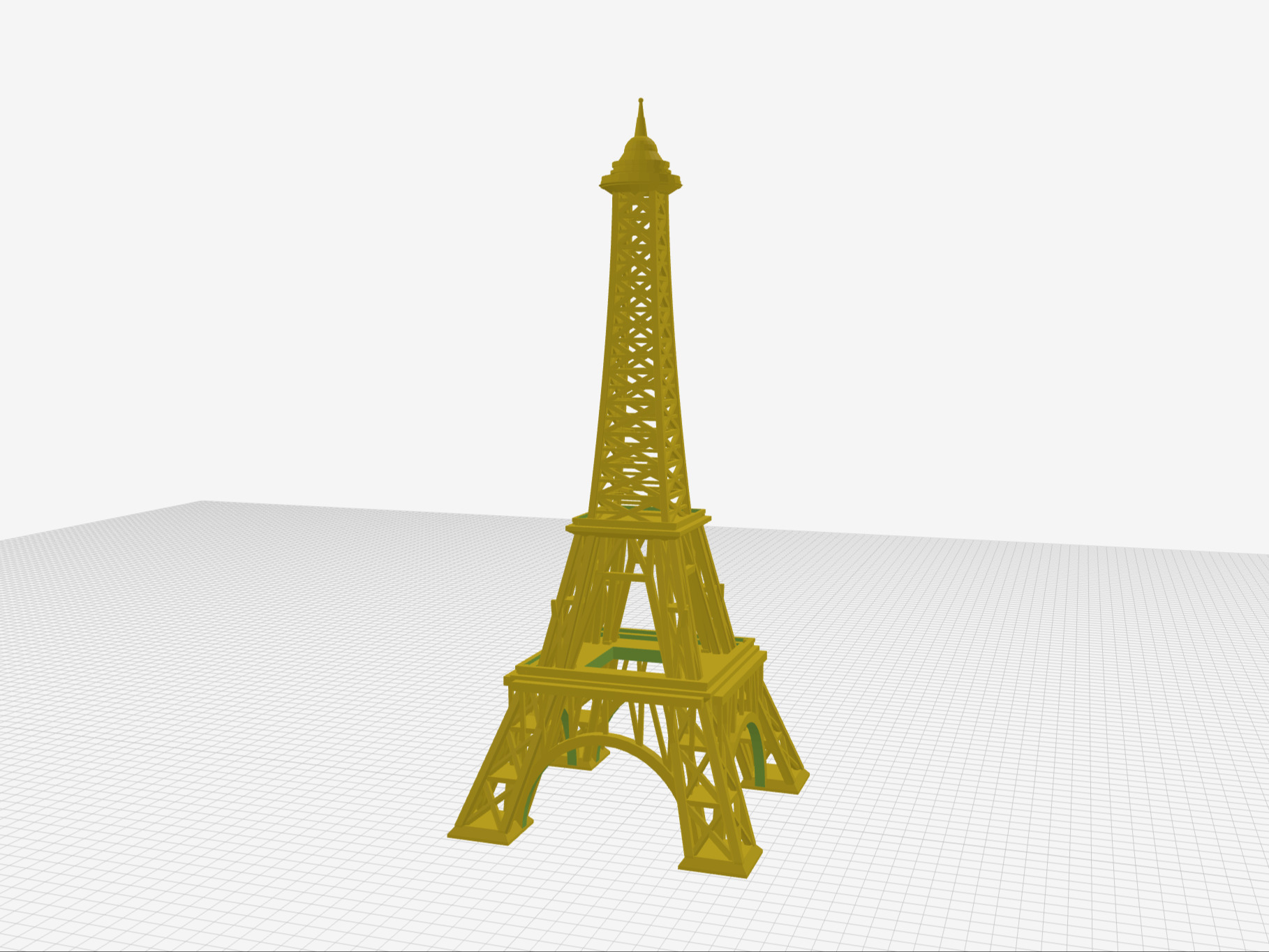

Eiffel Tower

// Realistic Openwork Lattice Eiffel Tower (Tour Eiffel)
// Deliverable: single_printable_part

/* [Dimensions & Scale] */
total_height = 200;       // [120:1:300]
base_width = 80;          // [50:1:150]

/* [Detail & Printability] */
fn_val = 24;              // [16:4:48]
strut_thickness = 1.3;    // [0.9:0.1:2.2]
add_spire = true;

/* [Calculated Milestones] */
p1_z = total_height * 0.19;      // ~38mm
p2_z = total_height * 0.38;      // ~76mm
p3_z = total_height * 0.83;      // ~166mm

p1_w = base_width * 0.64;        // ~51.2mm
p2_w = base_width * 0.37;        // ~29.6mm
p3_w = base_width * 0.14;        // ~11.2mm

$fn = fn_val;

// Helper: 3D bar between two points
module bar3d(p1, p2, w=strut_thickness) {
    hull() {
        translate(p1) cube([w, w, w], center=true);
        translate(p2) cube([w, w, w], center=true);
    }
}

module eiffel_tower() {
    union() {
        level_one();
        arches_level_one();
        platform_one();
        level_two();
        portal_level_two();
        platform_two();
        level_three_lattice();
        platform_three_and_spire();
    }
}

// -------------------------------------------------------------------------
// LEVEL 1: 4 Splayed Lattice Legs + Plinths
// -------------------------------------------------------------------------
module level_one() {
    leg_bot_c = base_width * 0.38;
    leg_top_c = p1_w * 0.36;
    leg_r_bot = base_width * 0.075;
    leg_r_top = base_width * 0.052;

    for (a = [0, 90, 180, 270]) {
        rotate([0, 0, a]) {
            // Plinth / foundation block
            translate([leg_bot_c, leg_bot_c, 0]) {
                hull() {
                    translate([0, 0, 0.4]) cube([leg_r_bot * 2.8, leg_r_bot * 2.8, 0.8], center=true);
                    translate([0, 0, 2.5]) cube([leg_r_bot * 2.2, leg_r_bot * 2.2, 0.8], center=true);
                }
            }

            // 4 main corner posts of each leg extending into Platform 1
            for (dx = [-1, 1], dy = [-1, 1]) {
                p_bot = [leg_bot_c + dx * leg_r_bot, leg_bot_c + dy * leg_r_bot, 2.0];
                p_top = [leg_top_c + dx * leg_r_top, leg_top_c + dy * leg_r_top, p1_z + 1.5];
                bar3d(p_bot, p_top, strut_thickness * 1.5);
            }

            // X-bracing panels along each leg (3 tiers)
            n_tiers = 3;
            for (i = [0 : n_tiers - 1]) {
                t0 = i / n_tiers;
                t1 = (i + 1) / n_tiers;
                z0 = 2.0 + t0 * (p1_z - 2.0);
                z1 = 2.0 + t1 * (p1_z - 2.0);

                c0 = leg_bot_c + t0 * (leg_top_c - leg_bot_c);
                c1 = leg_bot_c + t1 * (leg_top_c - leg_bot_c);
                r0 = leg_r_bot + t0 * (leg_r_top - leg_r_bot);
                r1 = leg_r_bot + t1 * (leg_r_top - leg_r_bot);

                // 4 faces of the leg column
                bar3d([c0 + r0, c0 - r0, z0], [c1 + r1, c1 + r1, z1], strut_thickness * 0.9);
                bar3d([c0 + r0, c0 + r0, z0], [c1 + r1, c1 - r1, z1], strut_thickness * 0.9);
                bar3d([c0 - r0, c0 + r0, z0], [c1 + r1, c1 + r1, z1], strut_thickness * 0.9);
                bar3d([c0 + r0, c0 + r0, z0], [c1 - r1, c1 + r1, z1], strut_thickness * 0.9);

                // Horizontal ring tie at each tier
                hull() {
                    translate([c1 - r1, c1 - r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 + r1, c1 - r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 + r1, c1 + r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 - r1, c1 + r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                }
            }
        }
    }
}

// -------------------------------------------------------------------------
// LEVEL 1 ARCHES: Grand Arches with Lattice Spandrels
// -------------------------------------------------------------------------
module arches_level_one() {
    arch_span = base_width * 0.62;
    arch_h = p1_z * 0.72;
    y_pos = base_width * 0.35;

    for (a = [0, 90, 180, 270]) {
        rotate([0, 0, a]) {
            // Main decorative lower arch rib
            translate([0, y_pos, 0]) {
                difference() {
                    rotate([90, 0, 0]) {
                        scale([arch_span / 2, arch_h, 1])
                            cylinder(r=1, h=strut_thickness * 2.2, center=true, $fn=fn_val*2);
                    }
                    rotate([90, 0, 0]) {
                        scale([(arch_span / 2) - strut_thickness * 2.0, arch_h - strut_thickness * 2.0, 1])
                            cylinder(r=1, h=strut_thickness * 4.0, center=true, $fn=fn_val*2);
                    }
                    translate([0, 0, -p1_z])
                        cube([base_width * 1.5, base_width * 1.5, p1_z * 2], center=true);
                }
            }

            // Spandrel lattice spokes
            n_spokes = 8;
            for (i = [1 : n_spokes - 1]) {
                ang = 180 * (i / n_spokes);
                rad_x = (arch_span / 2 - strut_thickness * 1.0) * cos(ang);
                rad_z = (arch_h - strut_thickness * 1.0) * sin(ang);

                if (rad_z > 1.0) {
                    bar3d([rad_x, y_pos, rad_z], [rad_x * 1.05, y_pos, p1_z], strut_thickness * 0.85);
                    bar3d([rad_x, y_pos, rad_z], [rad_x * 0.7, y_pos, p1_z], strut_thickness * 0.75);
                }
            }

            // Girder tie beam above the arch
            bar3d([-arch_span * 0.48, y_pos, p1_z - 0.5], [arch_span * 0.48, y_pos, p1_z - 0.5], strut_thickness * 1.8);
        }
    }
}

// -------------------------------------------------------------------------
// PLATFORM 1: First Observation Deck (Open Gallery)
// -------------------------------------------------------------------------
module platform_one() {
    translate([0, 0, p1_z]) {
        difference() {
            hull() {
                translate([0, 0, -1.5]) cube([p1_w * 0.94, p1_w * 0.94, 0.8], center=true);
                translate([0, 0, 1.0])  cube([p1_w * 1.04, p1_w * 1.04, 1.2], center=true);
            }
            cube([p1_w * 0.46, p1_w * 0.46, 6.0], center=true);
        }

        // Frieze band
        translate([0, 0, 2.0]) {
            difference() {
                cube([p1_w * 0.98, p1_w * 0.98, 1.8], center=true);
                cube([p1_w * 0.86, p1_w * 0.86, 2.4], center=true);
            }
        }

        // Balustrade railing
        translate([0, 0, 3.4]) {
            difference() {
                cube([p1_w * 1.00, p1_w * 1.00, 1.0], center=true);
                cube([p1_w * 0.94, p1_w * 0.94, 1.6], center=true);
            }
            for (sx = [-1, 1], sy = [-1, 1]) {
                translate([sx * p1_w * 0.47, sy * p1_w * 0.47, -0.5])
                    cube([p1_w * 0.05, p1_w * 0.05, 1.8], center=true);
            }
        }
    }
}

// -------------------------------------------------------------------------
// LEVEL 2: 4 Sloping Lattice Corner Legs
// -------------------------------------------------------------------------
module level_two() {
    z_start = p1_z + 0.5;
    z_end = p2_z + 0.5;

    leg2_bot_c = p1_w * 0.35;
    leg2_top_c = p2_w * 0.35;
    leg2_r_bot = p1_w * 0.055;
    leg2_r_top = p2_w * 0.065;

    for (a = [0, 90, 180, 270]) {
        rotate([0, 0, a]) {
            for (dx = [-1, 1], dy = [-1, 1]) {
                p_bot = [leg2_bot_c + dx * leg2_r_bot, leg2_bot_c + dy * leg2_r_bot, z_start];
                p_top = [leg2_top_c + dx * leg2_r_top, leg2_top_c + dy * leg2_r_top, z_end];
                bar3d(p_bot, p_top, strut_thickness * 1.35);
            }

            n_tiers_l2 = 2;
            for (i = [0 : n_tiers_l2 - 1]) {
                t0 = i / n_tiers_l2;
                t1 = (i + 1) / n_tiers_l2;
                z0 = z_start + t0 * (z_end - z_start);
                z1 = z_start + t1 * (z_end - z_start);

                c0 = leg2_bot_c + t0 * (leg2_top_c - leg2_bot_c);
                c1 = leg2_bot_c + t1 * (leg2_top_c - leg2_bot_c);
                r0 = leg2_r_bot + t0 * (leg2_r_top - leg2_r_bot);
                r1 = leg2_r_bot + t1 * (leg2_r_top - leg2_r_bot);

                bar3d([c0 + r0, c0 - r0, z0], [c1 + r1, c1 + r1, z1], strut_thickness * 0.85);
                bar3d([c0 + r0, c0 + r0, z0], [c1 + r1, c1 - r1, z1], strut_thickness * 0.85);
                bar3d([c0 - r0, c0 + r0, z0], [c1 + r1, c1 + r1, z1], strut_thickness * 0.85);
                bar3d([c0 + r0, c0 + r0, z0], [c1 - r1, c1 + r1, z1], strut_thickness * 0.85);

                hull() {
                    translate([c1 - r1, c1 - r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 + r1, c1 - r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 + r1, c1 + r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                    translate([c1 - r1, c1 + r1, z1]) cube([strut_thickness, strut_thickness, strut_thickness], center=true);
                }
            }
        }
    }
}

// -------------------------------------------------------------------------
// LEVEL 2 PORTAL: Clean Splayed "П"-Shape Portal Frame
// -------------------------------------------------------------------------
module portal_level_two() {
    z_start = p1_z + 0.5;
    z_end = p2_z + 0.5;
    h_l2 = z_end - z_start;

    // Portal geometry: "П with splayed legs"
    // Bottom width of portal opening at deck 1
    x_bot = p1_w * 0.28;
    // Top width of portal opening at transom beam
    x_top = p2_w * 0.22;
    z_transom = z_start + h_l2 * 0.68;

    y_bot = p1_w * 0.35;
    y_top = p2_w * 0.35;
    y_transom = y_bot + (z_transom - z_start) / h_l2 * (y_top - y_bot);

    for (a = [0, 90, 180, 270]) {
        rotate([0, 0, a]) {
            // Splayed vertical legs of the "П" portal frame
            bar3d([-x_bot, y_bot, z_start], [-x_top, y_transom, z_transom], strut_thickness * 1.3);
            bar3d([ x_bot, y_bot, z_start], [ x_top, y_transom, z_transom], strut_thickness * 1.3);

            // Horizontal crossbar (lintel of the "П")
            bar3d([-x_top, y_transom, z_transom], [x_top, y_transom, z_transom], strut_thickness * 1.4);

            // Upward continuation from transom to platform 2
            bar3d([-x_top, y_transom, z_transom], [-p2_w * 0.22, y_top, z_end], strut_thickness * 1.2);
            bar3d([ x_top, y_transom, z_transom], [ p2_w * 0.22, y_top, z_end], strut_thickness * 1.2);

            // Upper spandrel ties to Platform 2
            bar3d([-p2_w * 0.35, y_top, z_end - 0.5], [p2_w * 0.35, y_top, z_end - 0.5], strut_thickness * 1.5);
            bar3d([-x_top, y_transom, z_transom], [0, y_top, z_end], strut_thickness * 0.85);
            bar3d([ x_top, y_transom, z_transom], [0, y_top, z_end], strut_thickness * 0.85);

            // Diagonal corner brace to outer leg
            bar3d([-x_bot, y_bot, z_start], [-p1_w * 0.35, y_bot, z_start + h_l2 * 0.5], strut_thickness * 0.85);
            bar3d([ x_bot, y_bot, z_start], [ p1_w * 0.35, y_bot, z_start + h_l2 * 0.5], strut_thickness * 0.85);
        }
    }
}

// -------------------------------------------------------------------------
// PLATFORM 2: Second Observation Deck (Two-Tier Gallery)
// -------------------------------------------------------------------------
module platform_two() {
    translate([0, 0, p2_z]) {
        hull() {
            translate([0, 0, -1.2]) cube([p2_w * 0.88, p2_w * 0.88, 0.8], center=true);
            translate([0, 0, 0.6])  cube([p2_w * 1.05, p2_w * 1.05, 1.2], center=true);
        }

        translate([0, 0, 1.6])
            cube([p2_w * 0.92, p2_w * 0.92, 1.2], center=true);

        translate([0, 0, 2.7]) {
            difference() {
                cube([p2_w * 0.96, p2_w * 0.96, 1.0], center=true);
                cube([p2_w * 0.90, p2_w * 0.90, 1.4], center=true);
            }
            for (sx = [-1, 1], sy = [-1, 1]) {
                translate([sx * p2_w * 0.45, sy * p2_w * 0.45, -0.5])
                    cube([p2_w * 0.05, p2_w * 0.05, 1.5], center=true);
            }
        }
    }
}

// -------------------------------------------------------------------------
// LEVEL 3: Completely Open Hollow Lattice Shaft (Intricate Multi-Tier Trusses)
// -------------------------------------------------------------------------
module level_three_lattice() {
    z_start = p2_z + 0.5;
    z_end = p3_z + 0.5;
    h_shaft = z_end - z_start;

    w_start = p2_w * 0.35;
    w_top = p3_w * 0.45;

    n_tiers = 11; // 11 detailed lattice tiers

    for (i = [0 : n_tiers - 1]) {
        t0 = i / n_tiers;
        t1 = (i + 1) / n_tiers;

        // Eiffel exponential curvature formula
        p0 = pow(1 - t0, 1.65);
        p1 = pow(1 - t1, 1.65);

        w0 = w_top + (w_start - w_top) * p0;
        w1 = w_top + (w_start - w_top) * p1;

        z0 = z_start + t0 * h_shaft;
        z1 = z_start + t1 * h_shaft;
        zm = (z0 + z1) * 0.5;
        wm = (w0 + w1) * 0.5;

        for (a = [0, 90, 180, 270]) {
            rotate([0, 0, a]) {
                // Main corner pylon struts
                bar3d([w0, w0, z0], [w1, w1, z1], strut_thickness * 1.3);

                // Double X-lattice trusses on each outer face
                bar3d([-w0, w0, z0], [w1, w1, z1], strut_thickness * 0.75);
                bar3d([w0, w0, z0], [-w1, w1, z1], strut_thickness * 0.75);

                // Mid-tier intermediate horizontal brace
                bar3d([-wm, wm, zm], [wm, wm, zm], strut_thickness * 0.65);

                // Top tier horizontal perimeter girder
                bar3d([-w1, w1, z1], [w1, w1, z1], strut_thickness * 0.95);

                // Internal corner gussets to maintain structural rigidity without central solid rod
                bar3d([w1, w1, z1], [w1 * 0.4, w1 * 0.4, z1], strut_thickness * 0.7);
            }
        }
    }
}

// -------------------------------------------------------------------------
// PLATFORM 3, LANTERN DOME & SPIRE
// -------------------------------------------------------------------------
module platform_three_and_spire() {
    translate([0, 0, p3_z]) {
        // Platform 3 circular deck base
        translate([0, 0, -0.5])
            cylinder(r1=p3_w * 0.7, r2=p3_w * 1.0, h=2.2, center=true);

        // Main observation deck
        translate([0, 0, 0.8])
            cylinder(r=p3_w * 0.95, h=1.6, center=true);

        // Deck railing
        translate([0, 0, 2.0]) {
            difference() {
                cylinder(r=p3_w * 0.93, h=1.6, center=true);
                cylinder(r=p3_w * 0.83, h=2.0, center=true);
            }
        }

        // Lantern room / core
        translate([0, 0, 3.5])
            cylinder(r=p3_w * 0.65, h=5.0, center=true);

        // Intermediate belt
        translate([0, 0, 4.0])
            cylinder(r=p3_w * 0.72, h=0.8, center=true);

        // Dome cornice & base
        translate([0, 0, 6.0])
            cylinder(r=p3_w * 0.68, h=1.2, center=true);

        // Classical Parisian lantern dome
        translate([0, 0, 7.8]) {
            cylinder(r1=p3_w * 0.58, r2=p3_w * 0.40, h=3.0, center=true);
            translate([0, 0, 1.5])
                sphere(r=p3_w * 0.40);
        }

        // Antenna Mast & Spire
        if (add_spire) {
            translate([0, 0, 10.5]) {
                cylinder(r1=p3_w * 0.28, r2=p3_w * 0.18, h=4.0, center=true);

                translate([0, 0, 4.5])
                    cylinder(r1=p3_w * 0.18, r2=p3_w * 0.09, h=7.0, center=true);

                translate([0, 0, 9.5])
                    cylinder(r1=p3_w * 0.09, r2=p3_w * 0.03, h=6.0, center=true);

                translate([0, 0, 12.5])
                    sphere(r=p3_w * 0.06);
            }
        }
    }
}

eiffel_tower();
