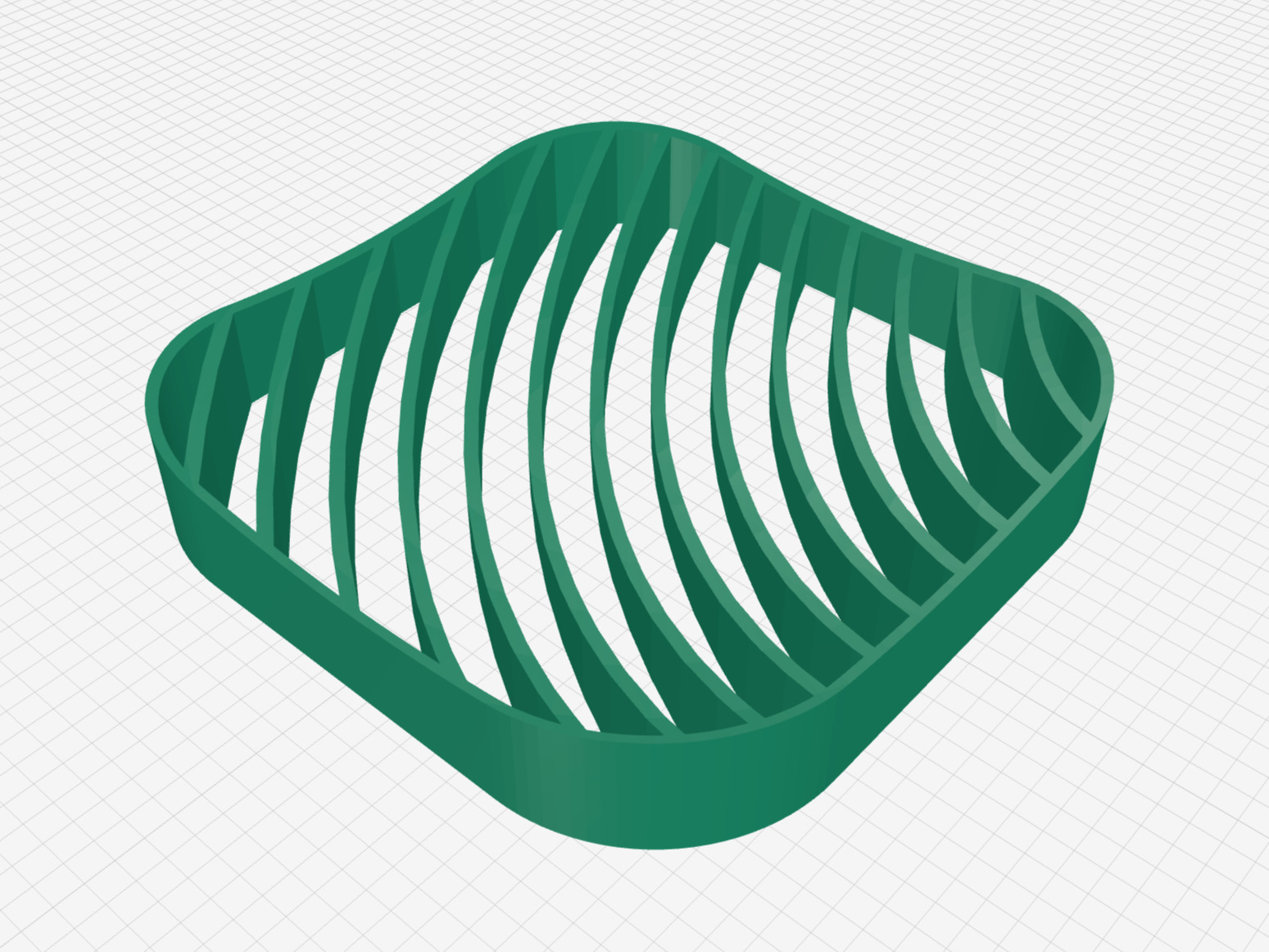

Soap dish v3 (radial lines)

// Offset Radial Soap Dish + Optional Drip Tray
// Concentric arcs anchored to walls for printability

/* [Output] */
// Which part to preview or export
part = "assembly";               // [dish,tray,assembly]
// Vertical gap between tray and dish in assembly preview (mm)
assembly_gap = 1.0;          // [0:0.5:8]

/* [Frame] */
// Outer frame width (mm)
frame_width = 135;           // [80:1:220]
// Outer frame height (mm)
frame_height = 135;          // [80:1:220]
// Total dish thickness (mm)
frame_depth = 24;            // [8:0.5:60]
// Border wall thickness (mm)
frame_border = 2.0;          // [1:0.1:8]
// Outer corner radius (mm)
corner_radius = 35;          // [8:0.5:70]

/* [Ribs] */
// Distance between radial ribs (mm)
ring_spacing = 11;           // [4:0.5:24]
// Thickness of each radial rib (mm)
ring_thickness = 2.5;        // [0.6:0.1:8]
// Ripple center X offset from model center (mm)
ripple_offset_x = 120;       // [0:1:260]
// Ripple center Y offset from model center (mm)
ripple_offset_y = 120;       // [0:1:260]

/* [Bowl] */
// Radius of spherical scoop cutout (mm)
dish_radius = 220;           // [120:1:420]
// Depth of scoop from top surface (mm)
dish_depth = 16;             // [4:0.5:36]

/* [Tray] */
// Clearance around dish footprint inside tray (mm)
tray_tolerance = 1.0;        // [0:0.1:3]
// Tray wall and floor thickness (mm)
tray_wall_thickness = 2.0;   // [0.8:0.1:8]
// Total tray height (mm)
tray_height = 8;             // [2:0.5:30]

/* [Quality] */
// Curve smoothness for rounded geometry
$fn = 100;                   // [48:1:180]

// --- Render selection ---
if (part == "dish") {
    soap_dish_body();
} else if (part == "tray") {
    drip_tray();
} else if (part == "assembly") {
    drip_tray();
    translate([0, 0, tray_height + assembly_gap]) soap_dish_body();
}

// --- Modules ---

module soap_dish_body() {
    // Position sphere so its bottom reaches the desired depth
    sphere_z_offset = (frame_depth - dish_depth) + dish_radius;

    // Calculate max distance to cover the opposite corner
    max_dist = sqrt(
        pow(ripple_offset_x + frame_width / 2, 2)
        + pow(ripple_offset_y + frame_height / 2, 2)
    );

    difference() {
        union() {
            // 1. Outer border frame
            difference() {
                rounded_square(frame_width, frame_height, frame_depth, corner_radius);

                // Interior cutout
                translate([0, 0, -1])
                    rounded_square(
                        frame_width - frame_border * 2,
                        frame_height - frame_border * 2,
                        frame_depth + 2,
                        corner_radius - frame_border
                    );
            }

            // 2. Anchored arc fill
            intersection() {
                // Keep arcs inside the frame boundary
                rounded_square(
                    frame_width - frame_border,
                    frame_height - frame_border,
                    frame_depth,
                    corner_radius - frame_border / 2
                );

                // Generate rings from the offset center
                translate([ripple_offset_x, ripple_offset_y, 0])
                    concentric_rings(max_dist, ring_spacing, ring_thickness, frame_depth);
            }
        }

        // 3. Concave scoop
        translate([0, 0, sphere_z_offset])
            sphere(r = dish_radius);
    }
}

module drip_tray() {
    // Fit tray to the soap dish outer footprint
    tray_inner_w = frame_width + (tray_tolerance * 2);
    tray_inner_h = frame_height + (tray_tolerance * 2);
    tray_inner_r = corner_radius + tray_tolerance;

    tray_outer_w = tray_inner_w + (tray_wall_thickness * 2);
    tray_outer_h = tray_inner_h + (tray_wall_thickness * 2);
    tray_outer_r = tray_inner_r + tray_wall_thickness;

    difference() {
        // Outer tray body
        rounded_square(tray_outer_w, tray_outer_h, tray_height, tray_outer_r);

        // Inner cavity; shifted up to keep floor thickness
        translate([0, 0, tray_wall_thickness])
            rounded_square(tray_inner_w, tray_inner_h, tray_height, tray_inner_r);
    }
}

module concentric_rings(max_r, spacing, thick, height) {
    // Start from 0 to max_r, though only arcs hitting the frame will be rendered
    for (r = [0 : spacing : max_r]) {
        difference() {
            cylinder(h = height, r = r + thick / 2);
            translate([0, 0, -0.5])
                cylinder(h = height + 1, r = r - thick / 2);
        }
    }
}

module rounded_square(w, h, z, r) {
    translate([-w / 2 + r, -h / 2 + r, 0])
    hull() {
        cylinder(h = z, r = r);
        translate([w - 2 * r, 0, 0]) cylinder(h = z, r = r);
        translate([0, h - 2 * r, 0]) cylinder(h = z, r = r);
        translate([w - 2 * r, h - 2 * r, 0]) cylinder(h = z, r = r);
    }
}
